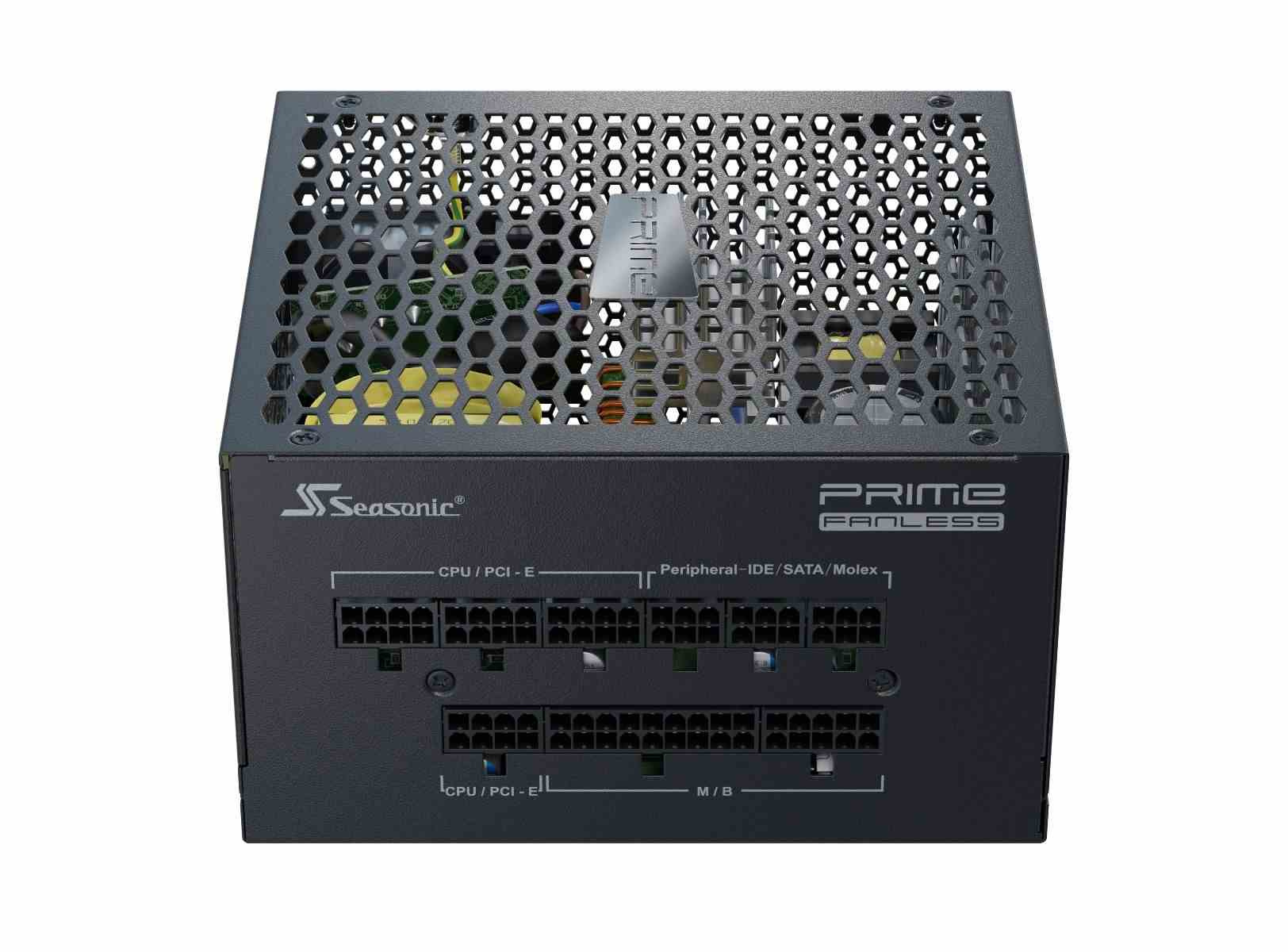

SEASONIC zdroj 500W Prime PX-500 Fanless (SSR-500PL)
Popis
Parametry
Hlídací pes
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Platinum | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | Intel ATX 12 V | |
| Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | N/A |
| Fan Control | N/A | |
| Fan Bearing | N/A | |
| Life Expectancy | N/A | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Webbed cables (MB, CPU, PCIe) Flat black cables | |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF @ 25 °C, excl. fan | 150,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 12 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 7-4 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 41 A | 0.3 A | 3 A | |
| 100 W | 492 W | 3.6 W | 15 W | |||
| Total continuous power | 500 W | |||||
CABLES
PRIME-FANLESS-PX-500
| Cable type | Connector(s) per cable | Total Length (mm) | Number(s) of cable(s) included |
|---|---|---|---|
| MB (24/20 pins) | 1 | 610 | 1 |
| CPU (8/4 pins) | 1 | 650 | 2 |
| PCIe (8/6 pins) | 2 | 750 | 0 |
| PCIe (8/6 pins) | 1 | 750 | 2 |
| SATA | 4 | 860 | 1 |
| SATA | 4 | 810 | 1 |
| SATA | 4 | 760 | 0 |
| SATA | 2 | 700 | 0 |
| SATA | 2 | 570 | 0 |
| SATA | 2 | 470 | 0 |
| SATA | 2 | 450 | 0 |
| Molex | 3 | 690 | 1 |
| Molex | 2 | 470 | 1 |
| Molex to SATA 3.3 Adapter | 2 | 300 | 0 |
| Molex to FDD Adapter | 1 | 101 | 1 |
Specifications are subject to change without prior notice.
Formát zdroje:
ATX
Konektory:
8pin CPU 1x
Konektory pro základní desku:
ATX 24-pin
Efektivita zdroje:
80 Plus Platinum
Modulární kabeláž:
Ano
Výkon zdroje (W):
500
Aktuální cena produktu je5412Kč
s dph
