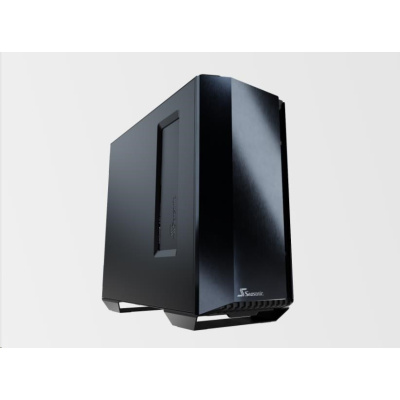

SEASONIC skříň SYNCRO Q704 + zdroj SYNCRO DGC-750 Gold, 750 W
Popis
Parametry
Hlídací pes

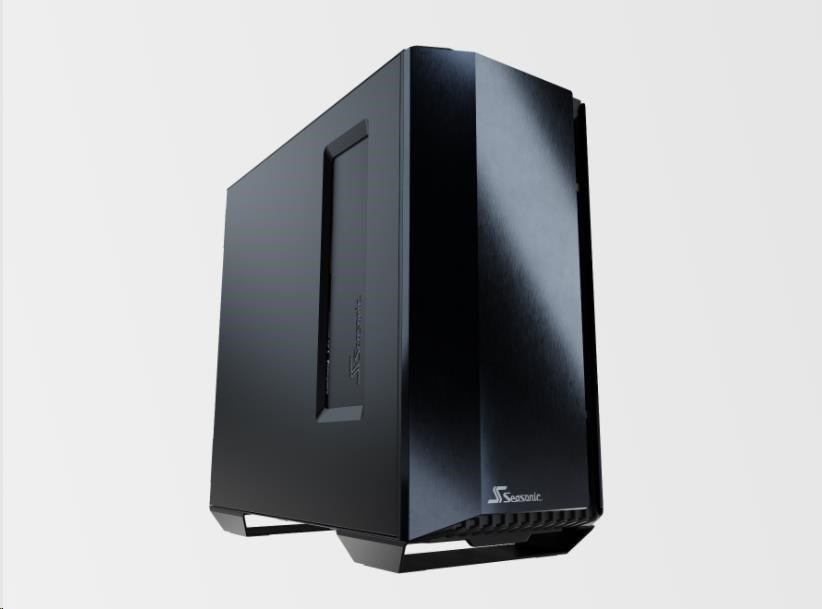

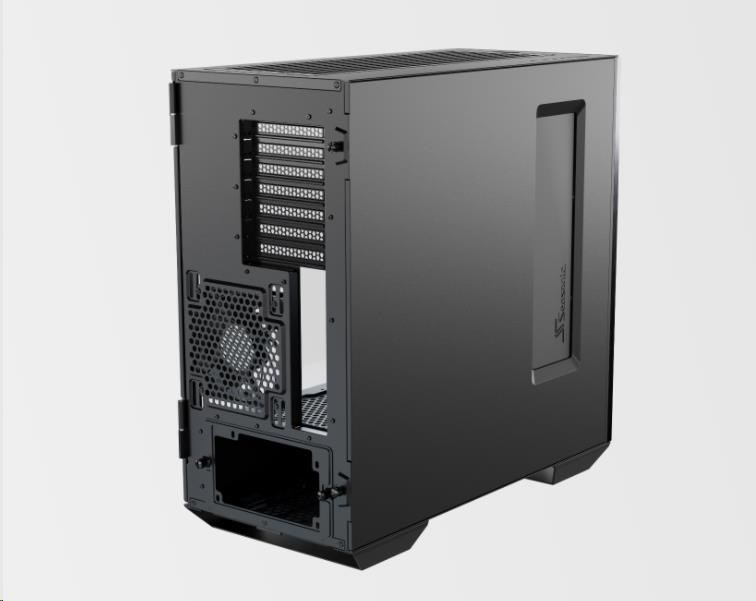

SYNCRO Q704 + SYNCRO DGC-750 Gold
The state-of-the-art Seasonic SYNCRO Q7 Series is a mid-tower ATX chassis that features an aluminum body and a tempered glass panel on one side and the Seasonic SYNCRO CONNECT Module on the other. This setup can accommodate powerful hardware and provides versatile cooling and ventilation options. The SYNCRO CONNECT Module functions as a cable management hub, to which the components are directly connected with generally shorter cables. This setup simplifies cable routing and allows for a clean look on both sides of the case.
- Inverted ATX format improves GPU cooling.
- All-round ventilation holes improve airflow.
- Enterprise-grade fans ensure powerful yet silent cooling.
- The large, magnet-held dust filters can easily be removed and reattached.
- Plentiful options for air- and liquid cooling solutions.
TECHNICAL SPECIFICATIONS
| Case Specifications | |
| Dimensions (D x W x H) | 537 x 234 x 493 mm |
| Form Factor | Mid Tower |
| Materials | Aluminum, Steel, Plastic |
| Side Panel Type | 4 mm Tempered Glass Side Panel |
| Compatibility and Clearances | |
| Mainboard Support | Extended ATX, ATX, Micro ATX, ITX |
| Maximum Motherboard Size | 305 mm x 277 mm |
| Maximum PSU Length | 280 mm |
| Maximum CPU Cooler Height | 185 mm |
| Maximum GPU Length | 345 mm |
| PCIe & Slots Drive Bays | |
| PCIe Slots | 7 |
| 3.5” HDD Bays* | 2 |
| 2.5” SSD Brackets | 3 |
| Radiator Support | |
| Front | Up to 360 mm |
| Top | Up to 360 mm |
| Rear | Up to 120 mm |
| Access and Control | |
| Power | 1 |
| Reset | 1 |
| USB 3.0 | 2 |
| HD Audio IN | 1 |
| HD Audio OUT | 1 |
| USB Type-C | 1 |
| Parts and Accessories | |
| 120 mm Seasonic-Nidec Fans | 4 |
| 3.5” HDD Drive Bays* | 2 |
| 2.5” SSD Brackets | 3 |
| Removable Dust Filters | 3 |
| Cable Management Cover | 1 |
| PSU Shroud | 1 |
| Motherboard and 2.5” SSD Screws | 20 |
| Motherboard Standof | 4 |
| 3.5” HDD Screws | 18 |
| Power Supply Screws | 4 |
| Reverse Fan Screws | 4 |
| Cable Tie | 6 |
| User Manual | 1 |
| Fabric Gloves (Pair) | 1 |
| Soft Cloth | 1 |
| Fan Support 120 mm | |
| Front | 3 |
| Top | 3 |
| PSU Shroud | 1 |
| Rear | 1 |
| Fan Support 140 mm | |
| Front | 3 |
| Top | 3 |
| PSU Shroud | 0 |
| Rear | 1 |
| Power Distribution | |
| Model | SYNCRO DGC-750 |
| Connect Module | +3.3 V: 20 A |
| +5 V: 20 A | |
| 100 W | |
| PSU | +12 V: 62 A, 744 W |
| -12 V: 0.3 A, 3.6 W | |
| +5 Vsb: 3 A, 15 W | |
| Total Power | 750 W |
| Wire Configuration | 1 x Main Power (24P / 20P) 140 mm 2 x EPS 12 V / ATX 12 V (8P / 4P) 360 mm 6 x PCI-E (8P / 6P) 10 x SATA 5 x Peripheral (4P) 3 x PWM SYNC 3 x ARGB SYNC |
| Dimensions (L x W x H) | PSU: 140 x 150 x 86 mm |
| Connect: 300 x 105 x 33 mm | |
*3.5” HDD bays can be used for 2.5” SSD.
.Provedení skříně:
Midi Tower
Barva skříně:
Černá
Počet pozic 3.5" (HDD):
2
Počet pozic 2.5" (SSD):
3
Vybavení PC skříně:
S integrovaným zdrojem
Vybavení PC skříně:
Průhledná bočnice
Vybavení PC skříně:
Přední Audio panel
Vybavení PC skříně:
Přední USB panel
Výkon zdroje (W):
750
Aktuální cena produktu je11728Kč
s dph
