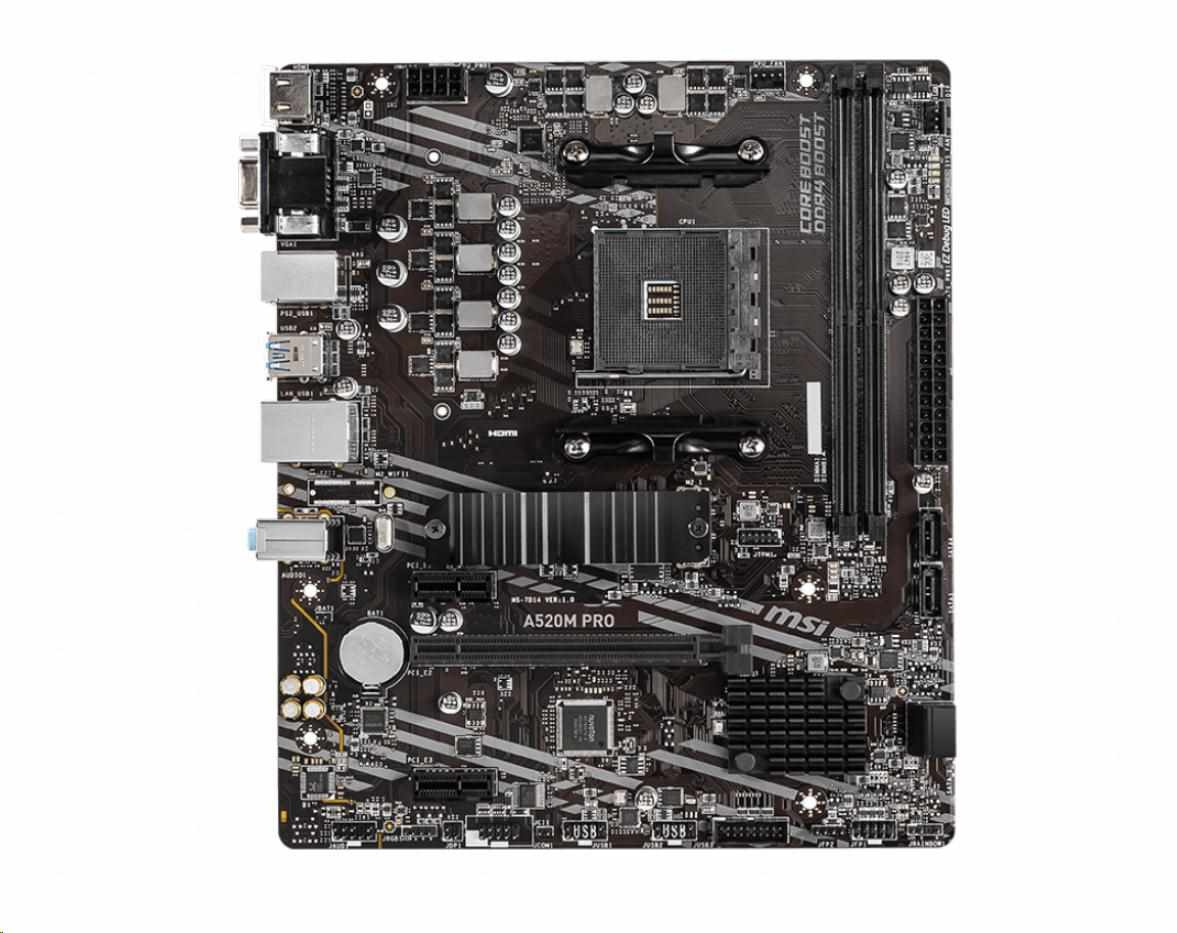

MSI MB Sc AM4 A520M PRO, AMD A520, VGA, 2xDDR4, mATX

Přidat do oblíbenýchMSI MB Sc AM4 A520M PRO, AMD A520, VGA, 2xDDR4, mATX
Formát základní desky:micro ATX; Chipset:Intel B360, AMD A520; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:2; M.2 slot:1; SATA 3:4; Podpora RAID:1, 10; PCI Express x16:1; PCI Express x1:2; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:1; DVI:0; USB 2:6; USB 3:6; TPM; 3.5mm Jack.

Kód produktu2647647
Part numberA520M PRO
EAN produktu4719072755492

Záruka:36 Měsíc(ů)
Výrobce:MSI
Skladová dostupnost:Skladem
Běžná cena
2564 Kč
Vaše cena bez DPH
1585.12 Kč
Vaše cena včetně DPH
1918 Kč
Počet
ks
Dotaz na prodejce >






Přidat produkt k porovnání >Přidat produkt k oblíbeným >
Popis
Parametry
Hlídací pes

A520M PRO

  • Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
  • Supports DDR4 Memory, up to 4600(OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface

TECHNICAL SPECIFICATIONS

Socket AM4
CPU Support Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
Chipset AMD® A520 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB
    - Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    - Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
    - 1DPC 1R max speed 4600 MHz
    - 1DPC 2R max speed 3866 MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
Expansion Slot
  • 1x PCIe x16 slot (PCI_E2)
  • 2x PCIe 3.0 x1 slots
Onboard Graphics
Storage

AMD A520 Chipset

  • 4x SATA 6Gb/s ports
  • 1x M.2 slot (Key M) (from AMD Processor)
    - M2_1 slot (from AMD Processor)
    - Supports PCIe 3.0 x4 1
    - Supports SATA 6Gb/s
    - Supports 2242/ 2260/ 2280 storage devices
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB

AMD A520 Chipset

  • 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio
LAN
  • 1x Realtek® RTL8111H LAN controller
Internal Connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x Serial port connector
  • 1x M.2 slot (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 4-pin RGB LED connector
  • 1x 3-pin RAINBOW LED connector
  • 1x TPM module connector
  • 1x Clear CMOS jumper
Back Panel Ports
  • VGA
  • Keyboard / Mouse
  • LAN port
  • HDMI
  • DisplayPort
  • USB 2.0 Ports
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 3.2 Gen 1 5Gbps Type-A
  • Audio Connectors
Dimensions
  • M-ATX Form Factor
  • 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
Mounting
  • 6 mounting holes
Box Content
  • A520M Pro
  • Quick Installation Guide
  • MSI Case Badge
  • 2x SATA Cables
  • Product Registration Card
  • I/O Shielding
  • Driver DVD
Form Factor m-ATX
Operating System Support for Windows® 10 64-bit

.
Technologie paměti RAM: DDR4
Socket (patice): Socket AM4
Chipset: Intel B360
Chipset: AMD A520
PCI Express x16: 1
Podpora RAID: 1
Podpora RAID: 10
LPT port: Ne
Formát základní desky: micro ATX
3.5mm Jack: Ano
Bezdrátové připojení: bez
Pro procesory: AMD
Počet paměťových slotů: 2
DisplayPort: 1
TPM: Ano
USB 2: 6
USB 3: 6
M.2 slot: 1
SATA 3: 4
VGA: 1
DVI: 0
HDMI: 1
Led Header: Ne
PCI Express x1: 2
LAN: 1Gbit/s
