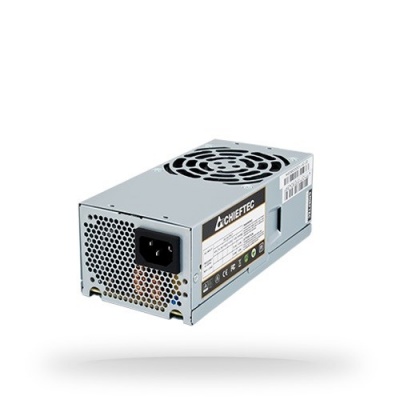

CHIEFTEC zdroj TFX GPF-300P, 300W, ATX-12V V.2.3, PFC, full range
Popis
Parametry
Hlídací pes
GPF-300P
The latest generation of TFX power supplies comes with a new model: GPF-300P (12V version 2.3). Equipped with both a state-of-the-art interior and 80PLUS® Bronze efficiency, this power supply is ideal for home entertainment systems or small size systems. Compatible with both Intel/AMD processors, featuring with active PFC and a smooth running, temperature-controlled fan, the CHIEFTEC GPF-300P provides reliable performance for enthusiast seeking for efficiency.
SPECIFICATIONS:
Performance
.Model | Smart 300W |
Article no. | GPF-300P |
EAN code | 4710713234666 |
Weight (without/with package) | 1.07 kg / 1.13 kg |
AC Input | 115-230V / 6.3A |
Frequency | 47-63Hz |
+5V | 15A |
+3,3V | 16A |
+5V & +3,3V combined | 95W |
+12V 1 | 14A |
+12V 2 | 15A |
+12V 1 & +12V 2 combined | - |
P.F. | >0,9 |
-12V | 0,3A / 3,6W |
+5VsB | 2.0A / 10W |
Maximum Power | 300W |
Connectors
20+4PIN ATX | 1 |
8 PIN EPS (4+4) | 1 |
SATA | 4 |
MOLEX | 2 |
FLOPPY | 1 |
Cable length
20+4PIN ATX | 300 |
8 PIN EPS (4+4) | 350 |
MOLEX/MOLEX/FLOPPY | 350/150/150 |
SATA | 2x 350/150 |
Features
Specification | ATX 12V 2.3 |
Form factor | PS II |
Efficiency | 80 PLUS® Bronze |
Dimension (DxWxH) | 175mm x 85mm x 65mm |
PFC | Active PFC (0.9) |
Fan | 80mm silent fan |
Security |
|
Warranty | 24 Months |
Formát zdroje:
TFX
Konektory:
FDD
Konektory:
Molex
Konektory:
SATA 15-pin
Konektory pro základní desku:
ATX 24-pin
Konektory pro základní desku:
EPS 8-pin
Efektivita zdroje:
85+
Modulární kabeláž:
Ne
Výkon zdroje (W):
300
Aktuální cena produktu je1016Kč
s dph
