ASUS MB Sc LGA1851 PRO Q870I-C-CSM, Intel Q870, 4xDDR5, 2xDP, 1xHDMI, Mini-ITX
Popis
Parametry
Hlídací pes

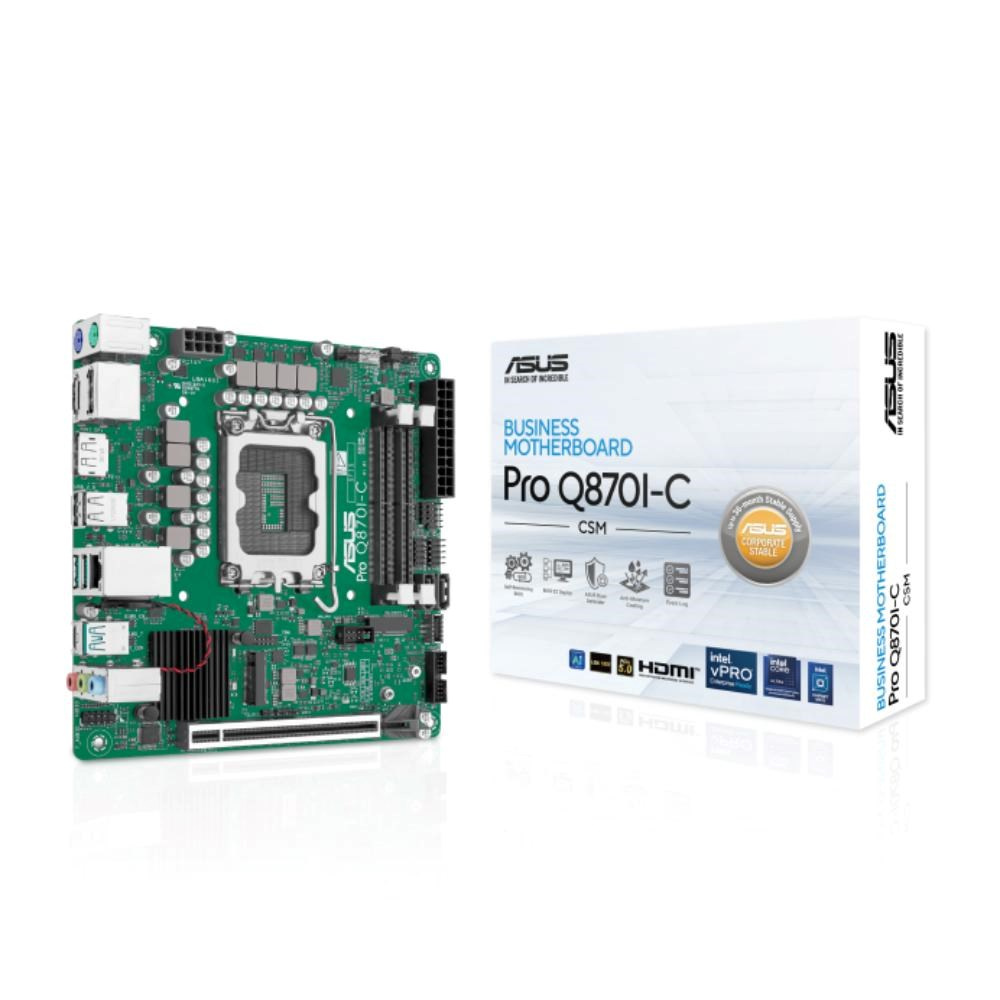

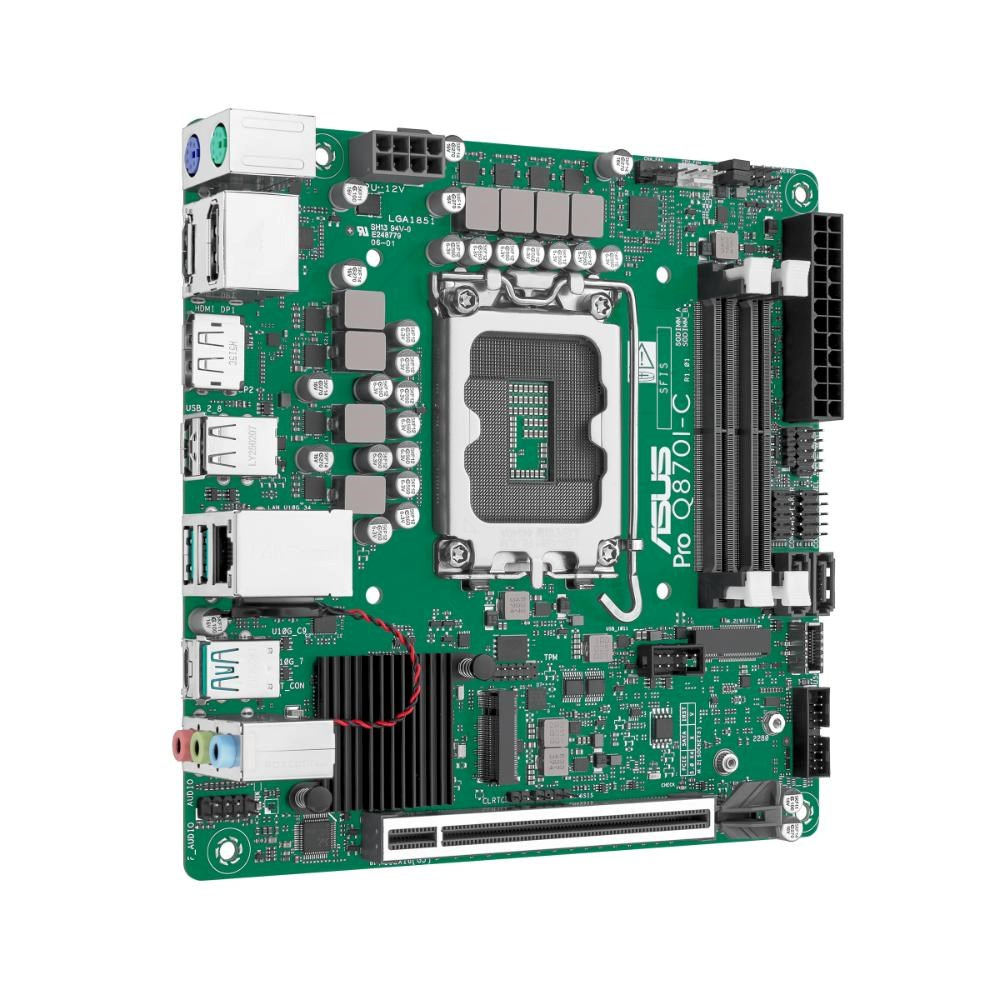

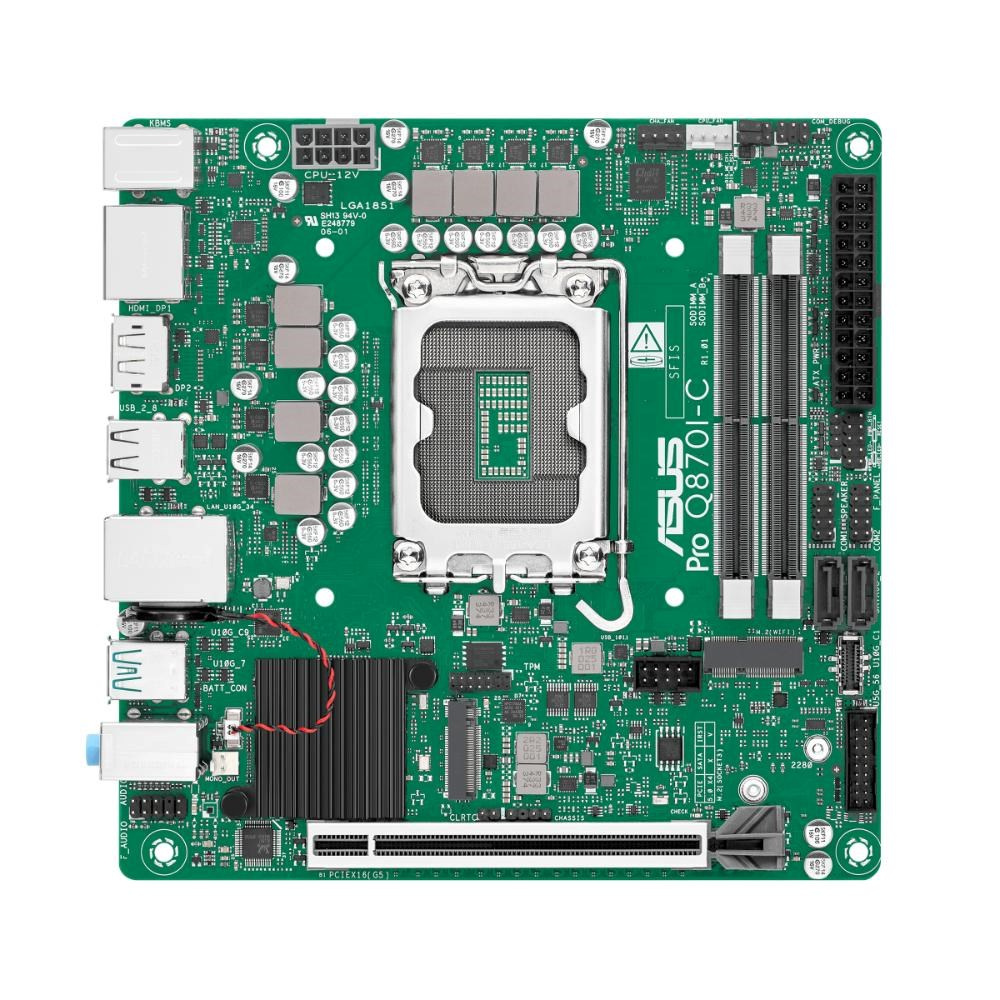

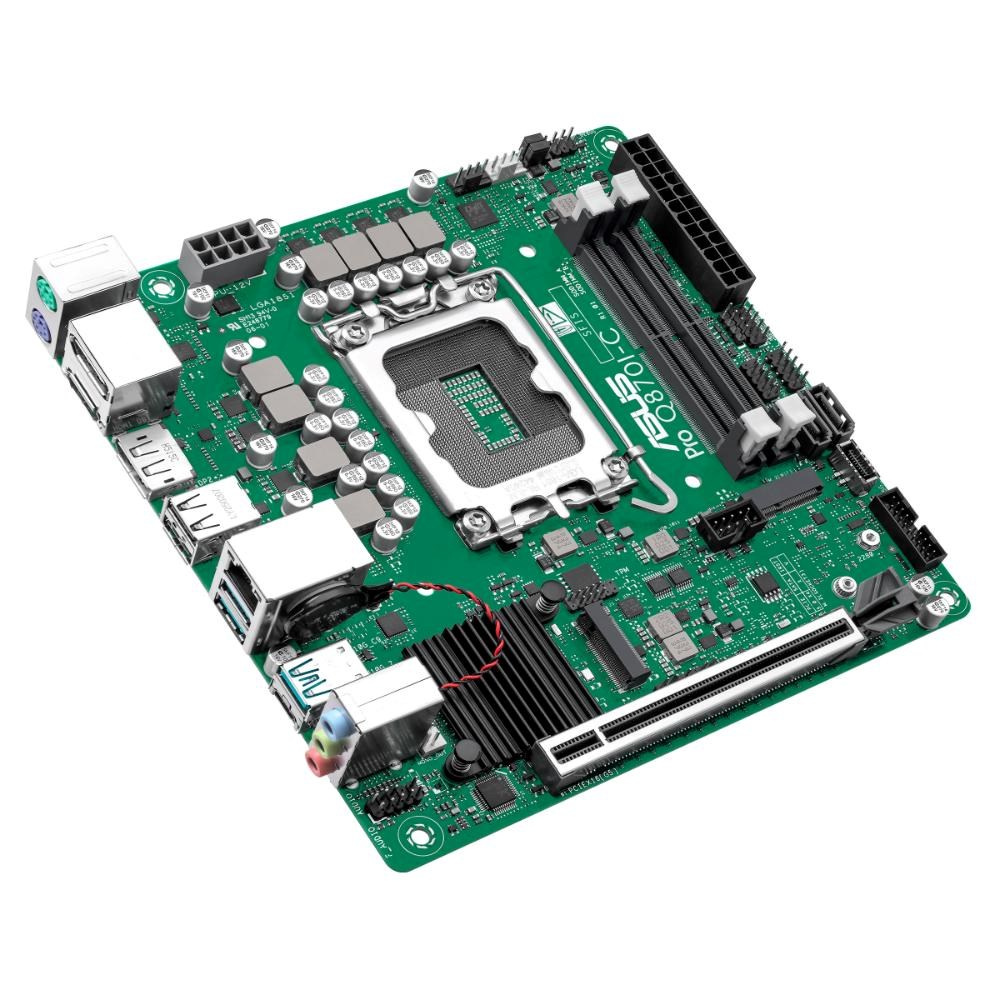

ASUS Pro Q870I-C-CSM
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
- ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced System Security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
- Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
- Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast Connectivity: PCIe 5.0, DDR5 SO-DIMM slots , rear and front USB 10Gbps Type-C®
- DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
CPU
- Supports Intel® Core™ Ultra Processors (Series 2), LGA1851
- Supports Intel® Turbo Boost Technology 2.0
- Supports Intel® Turbo Boost Max Technology 3.0
- CPU supports up to 65W
- Turbo Boost Max Technology 3.0 support depends on CPU type
Chipset
Intel® Q870 Chipset
Memory
- 2 × SO-DIMM slots, max. 128GB
- DDR5 up to 6400 MT/s
- Non-ECC, Un-buffered, Clocked SO-DIMM
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP)
- On-Die ECC supported (Non-ECC DDR5)
Graphics
- 2 × DisplayPort (up to 4K @ 60Hz)
- 1 × HDMI™ (up to 4K @ 60Hz)
- Graphics output depends on CPU
Expansion Slots
- 1 × PCIe 5.0 x16 slot
Storage
- 1 × M.2 slot (Key M, 2280, PCIe 5.0 x4)
- 2 × SATA 6Gb/s ports
Ethernet
- Intel® I219LM 1Gb Ethernet
- ASUS LANGuard
Wireless & Bluetooth
- M.2 2230 slot (Key E, CNVi & PCIe)
- Wi-Fi module sold separately
USB

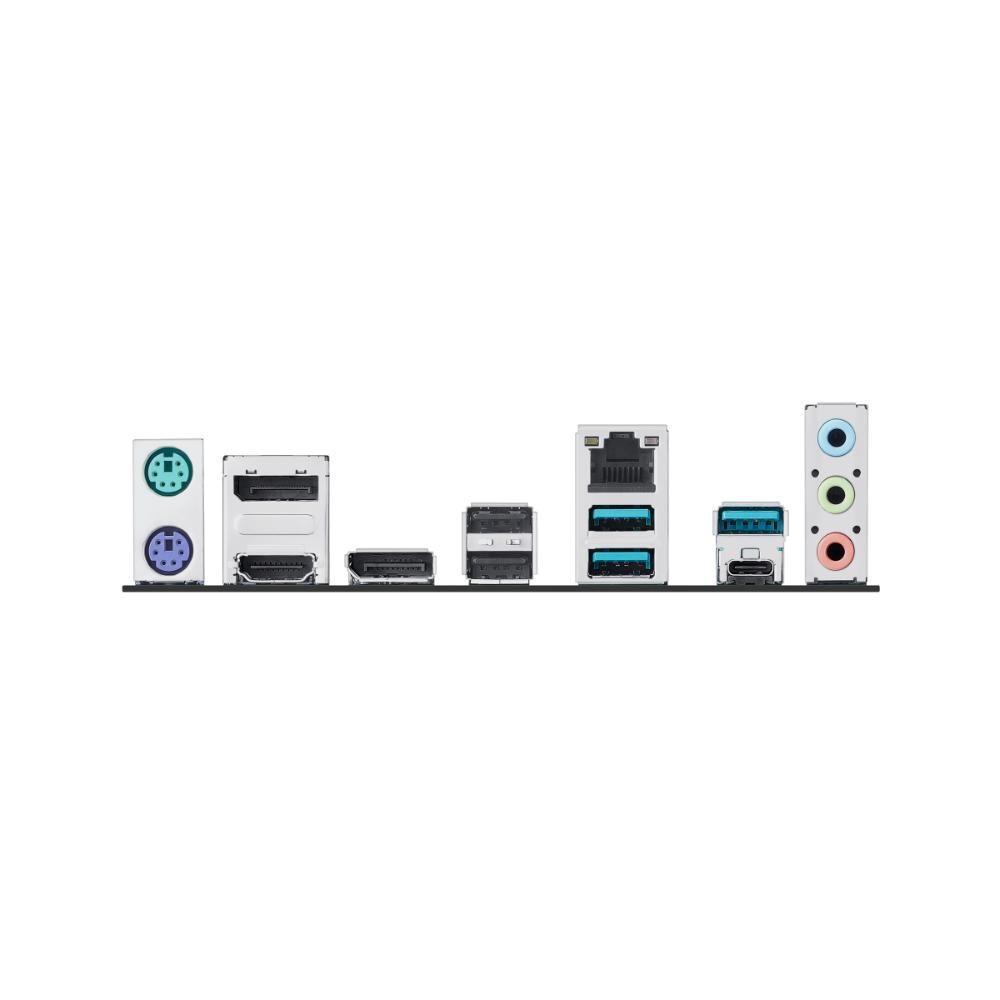

Rear USB
- 1 × USB 10Gbps Type-C®
- 3 × USB 10Gbps Type-A
- 2 × USB 2.0 Type-A
Front USB
- 1 × USB 10Gbps Type-C® connector
- 1 × USB 5Gbps header (supports 2 ports)
- 1 × USB 2.0 header (supports 2 ports)
Audio
- Realtek 7.1 Surround Sound HD Audio CODEC
- Up to 24-bit / 192 kHz playback
Form Factor
Mini-ITX (17 × 17 cm)
Technologie paměti RAM:
DDR5
Socket (patice):
Socket 1851
Chipset:
Intel Q870
PCI Express x16:
2
Podpora RAID:
1
Podpora RAID:
10
Podpora RAID:
5
COM port:
Ano
LPT port:
Ano
Formát základní desky:
micro ATX
3.5mm Jack:
Ano
Bezdrátové připojení:
WiFi + Bluetooth
Pro procesory:
Intel
Počet paměťových slotů:
4
DisplayPort:
2
TPM:
Ano
USB 2:
5
USB 3:
6
M.2 slot:
2
SATA 3:
4
HDMI:
1
Led Header:
Ne
PCI Express x1:
1
USB C:
2
LAN:
1Gbit/s
Aktuální cena produktu je6144Kč
s dph
