ASUS MB Sc AM5 TUF GAMING B850-PRO WIFI7 W NEO, AMD B850, 4xDDR5, 1xHDMI, 1xDP

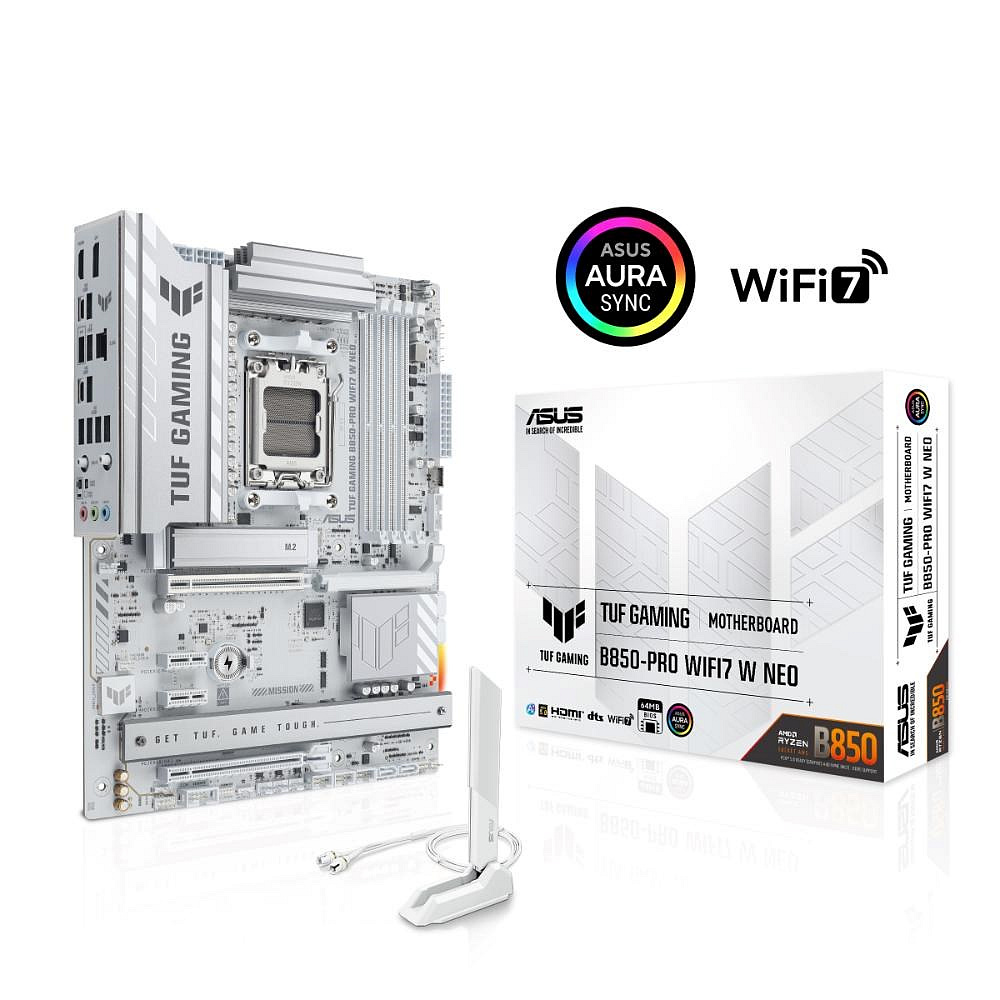

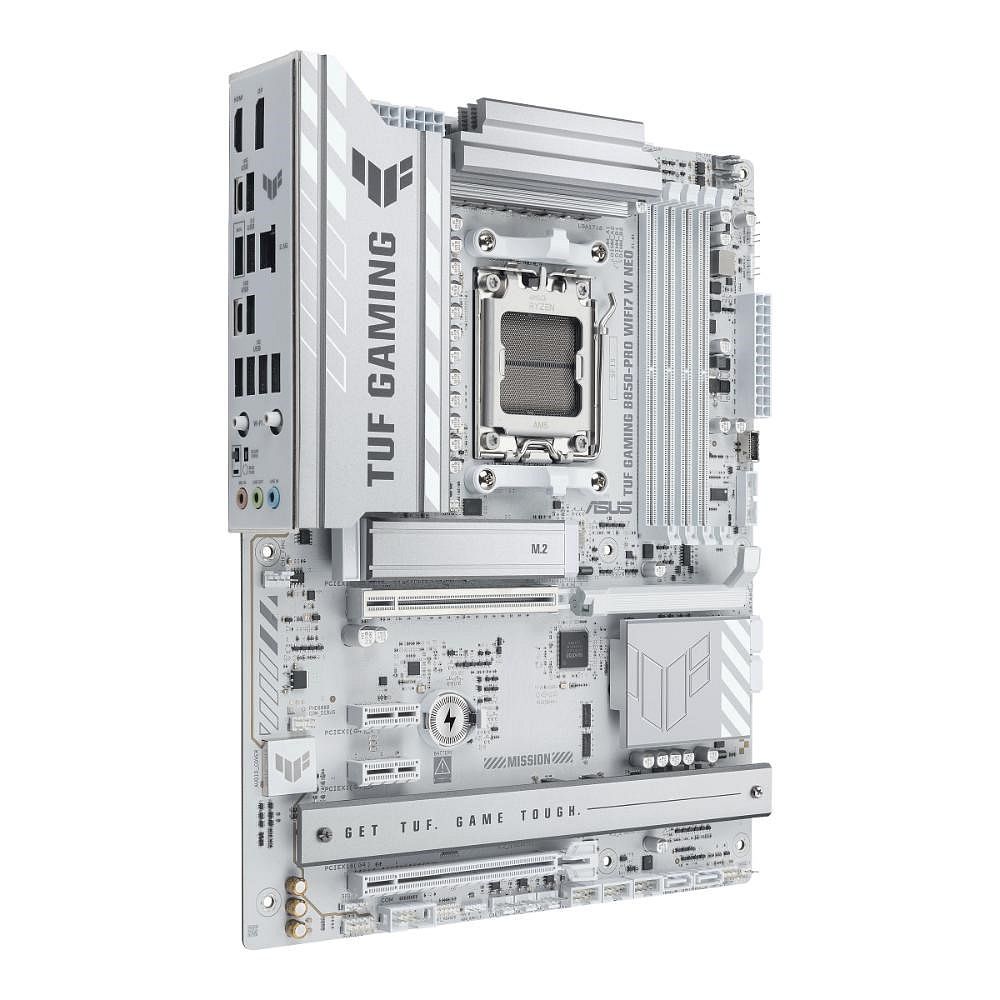

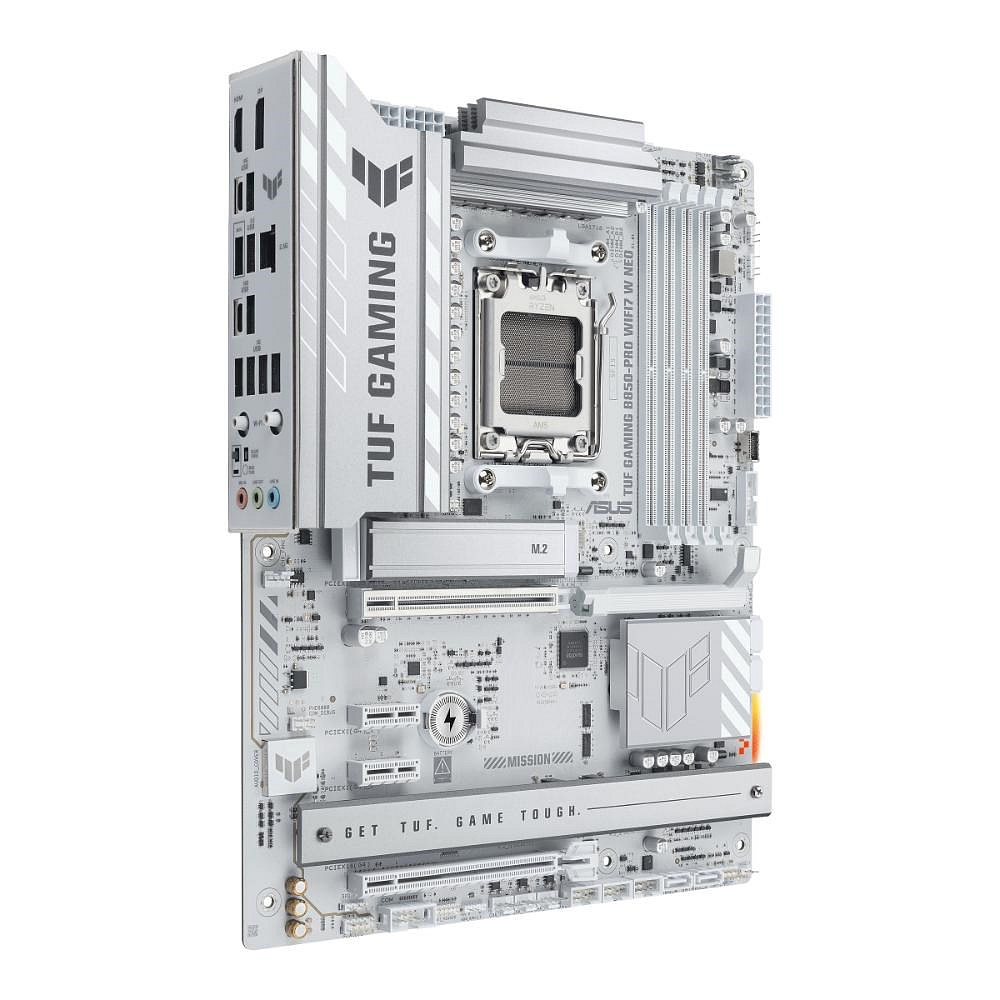

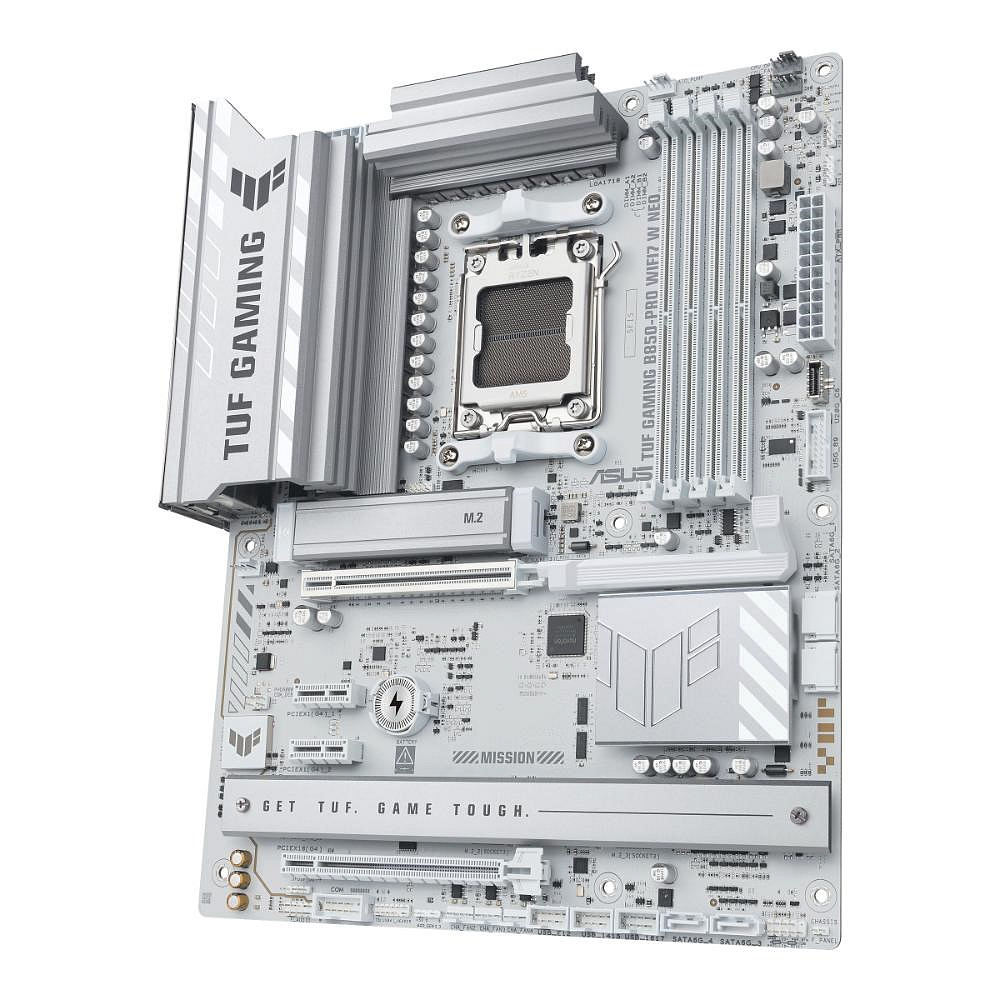

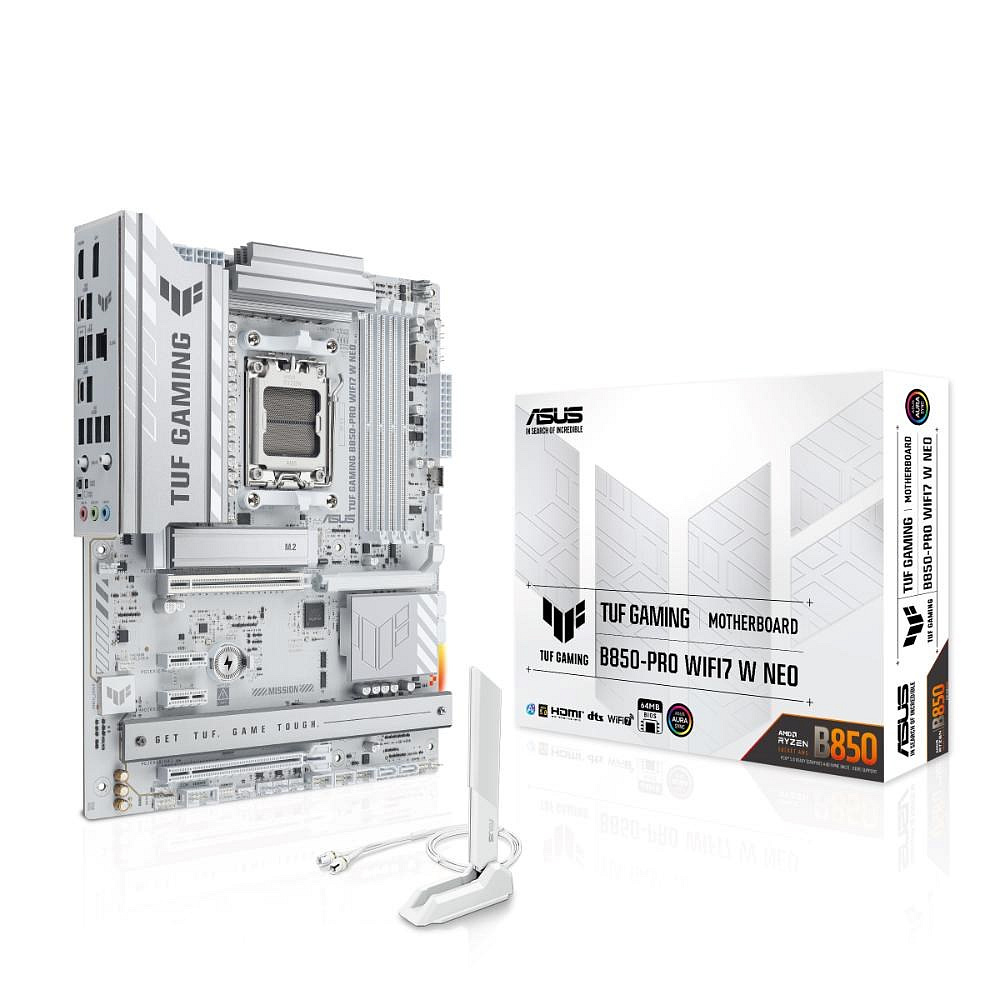

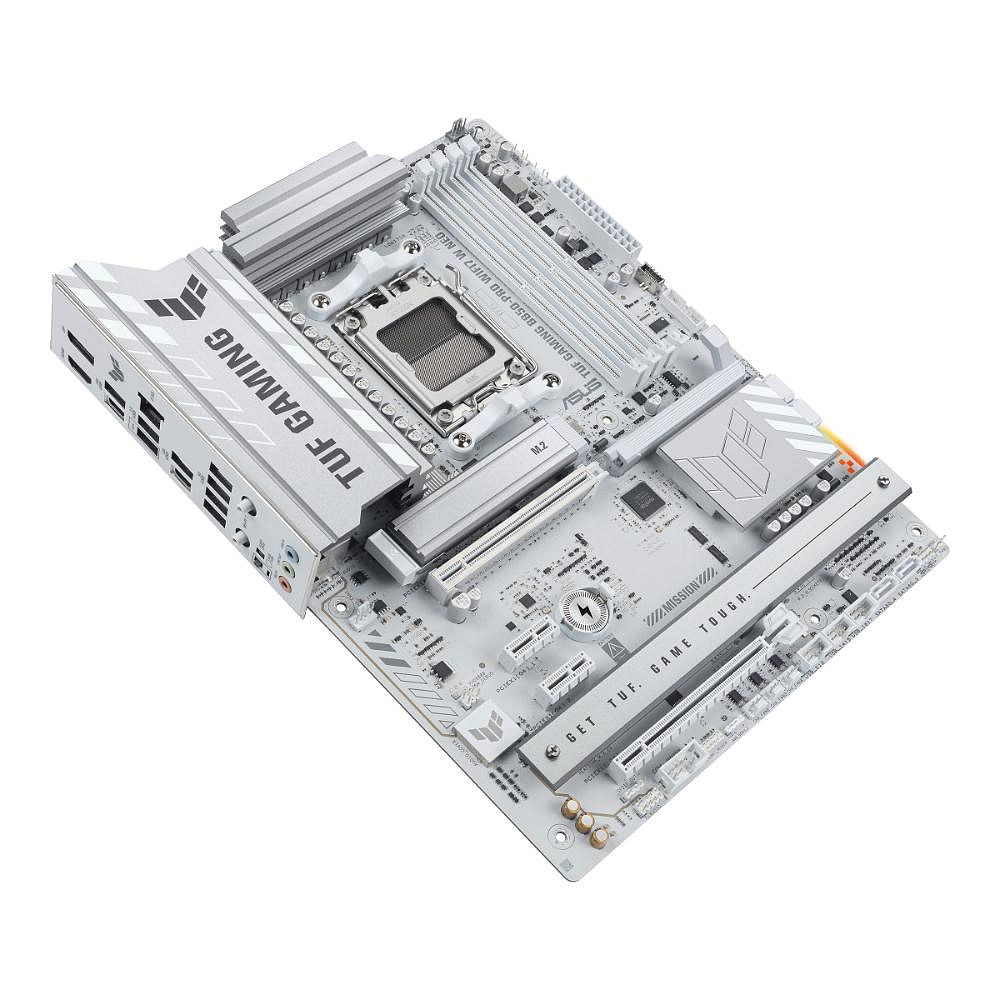

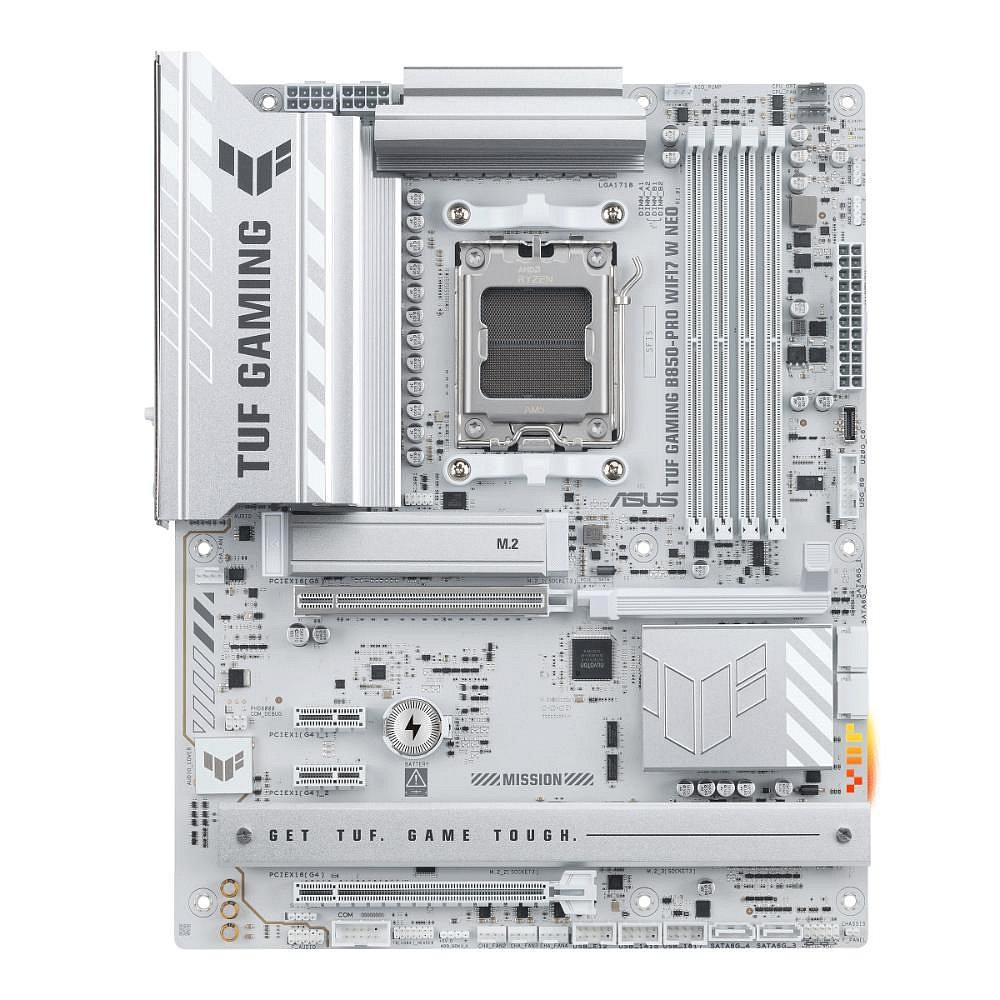

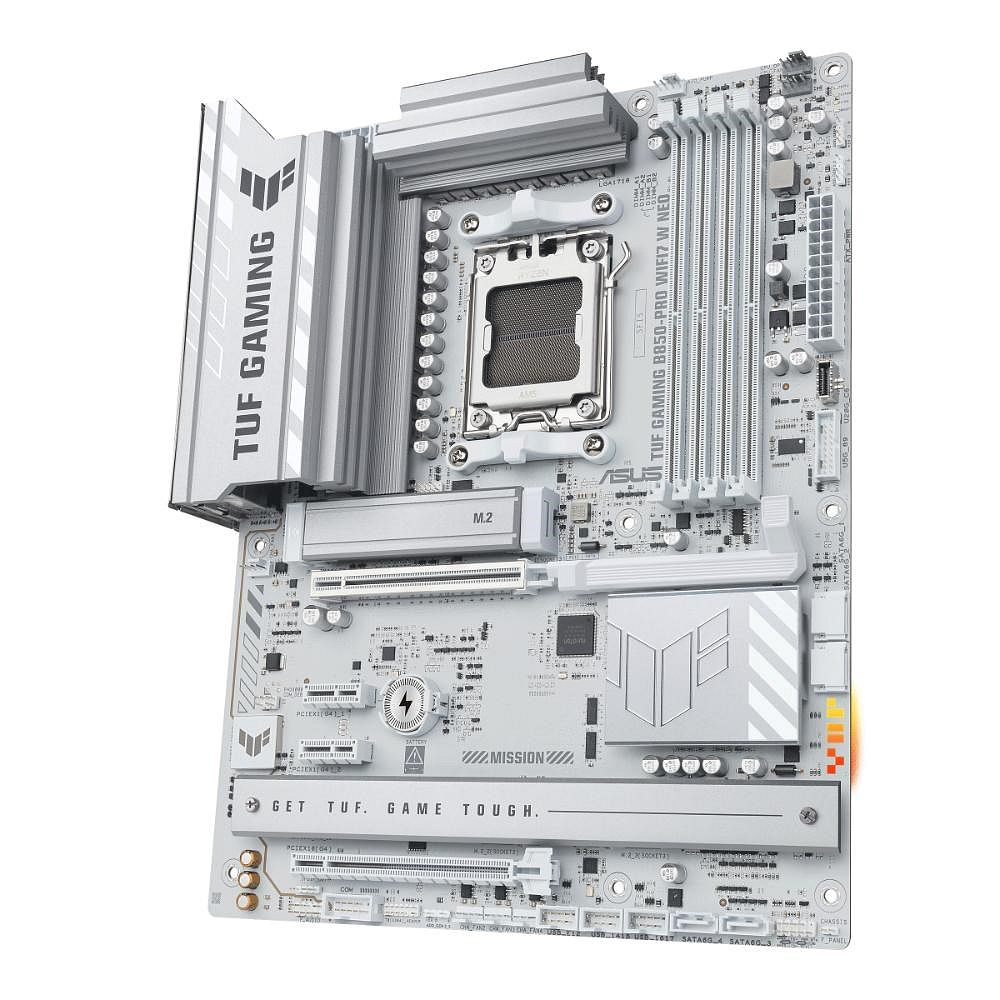

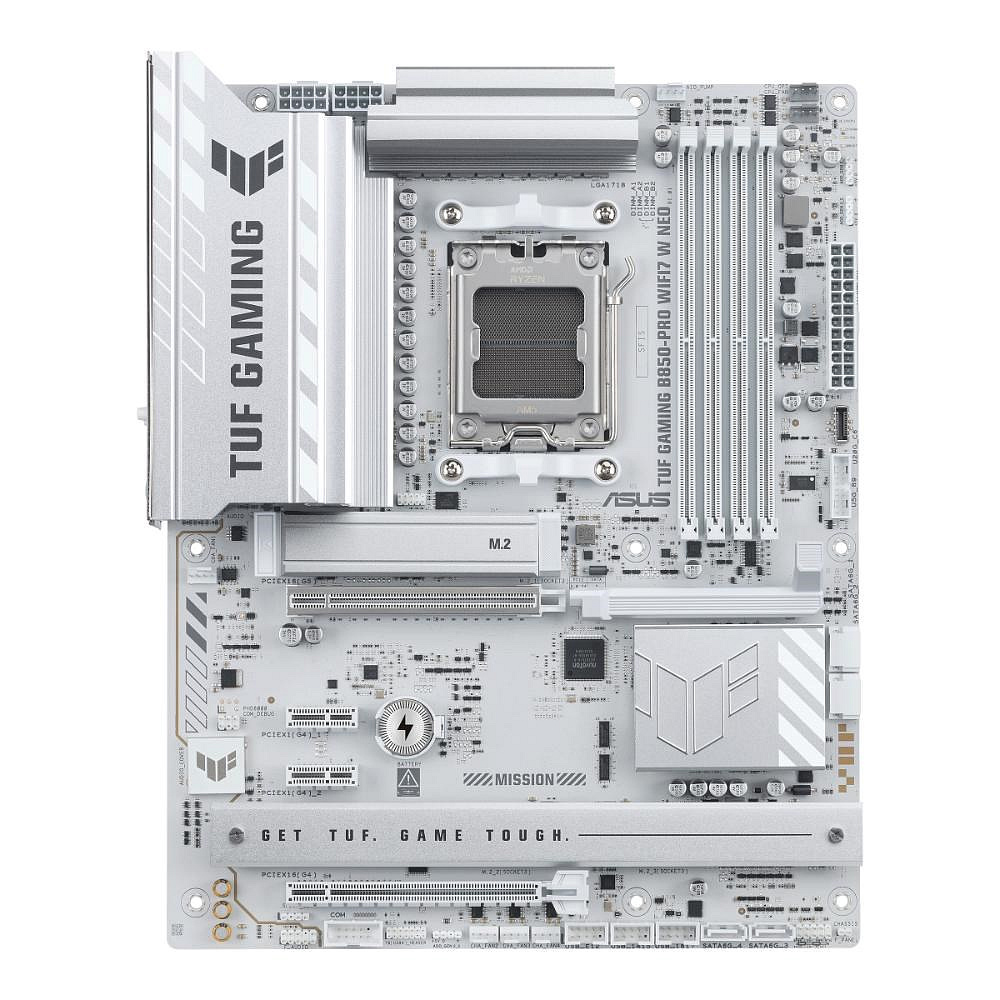

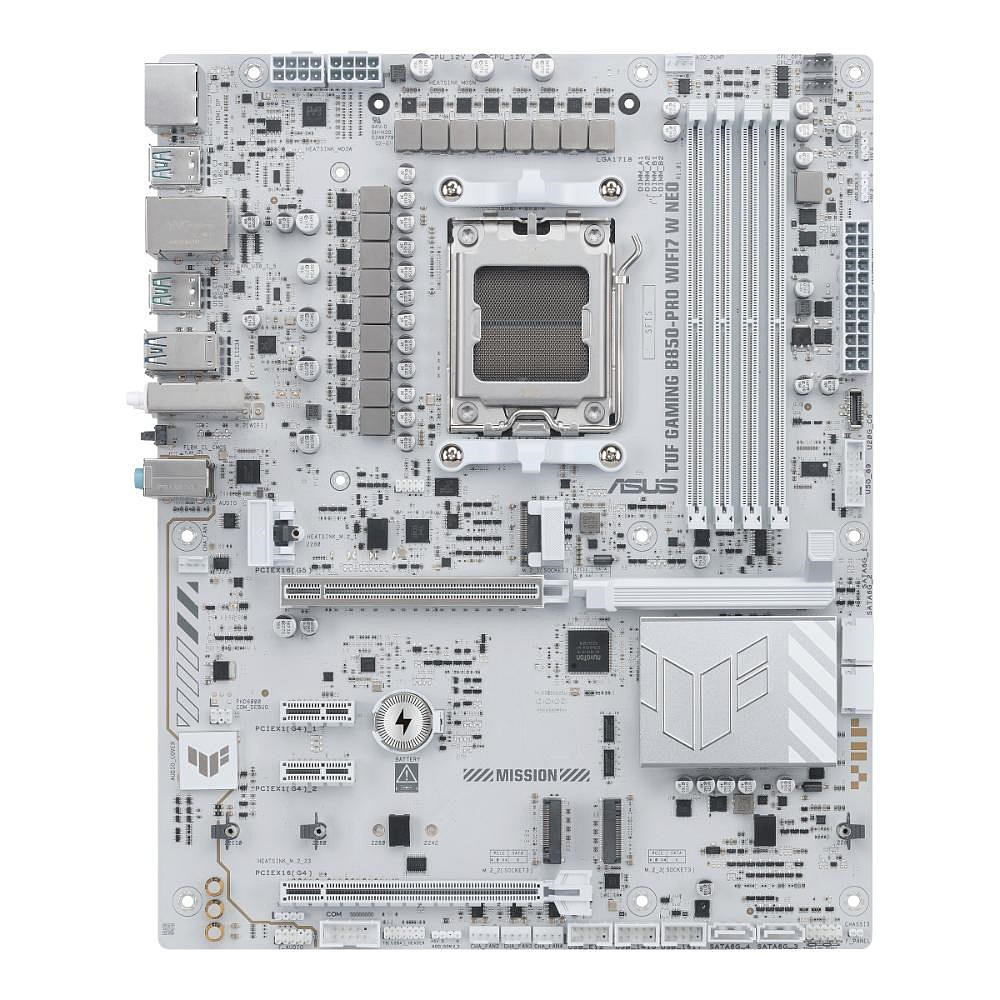

ASUS TUF GAMING B850-PRO WIFI7 W NEO
ASUS TUF GAMING B850-PRO WIFI7 W NEO takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset
AMD B850 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to
8400+MT/s(OC)*/8200+MT/s(OC)** with Ryzen™ 9000 Series Processors,
9000+MT/s(OC)*/8600+MT/s(OC)** with Ryzen™ 8000 Series Processors,
8000+MT/s(OC)*/8000+MT/s(OC)** with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM***
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Graphics
1 x DisplayPort**
1 x HDMI™ port***
* Available only on processors featuring integrated graphics.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1 slots
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Processors
M.2_1 slot (Key M), type 2280 (PCIe 5.0 x4)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (PCIe 4.0 x4)
AMD Ryzen™ 8000 Series Processors
M.2_1 slot (Key M), type 2280 (PCIe 4.0 x4)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (PCIe 4.0 x4/x2)
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (PCIe 4.0 x4)
4 x SATA 6Gb/s ports
RAID Support
AMD RAIDXpert2 Technology
RAID 0/1/5/10
Ethernet
1 x Realtek® 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth
Wi-Fi 7 (Realtek® RTL8922AE)
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.4 (supports LE Audio)
USB
Rear USB (Total 10 ports)
4 x USB 10Gbps (2 x Type-A + 2 x USB Type-C®)
4 x USB 5Gbps (Type-A)
2 x USB 2.0
Front USB (Total 9 ports)
1 x USB 20Gbps Type-C®
1 x USB 5Gbps header (2 ports)
3 x USB 2.0 headers (6 ports)
Audio
Realtek® ALC1220P 7.1 Surround Sound High Definition Audio CODEC
120 dB SNR playback / 113 dB SNR recording
Supports up to 32-Bit/192 kHz playback

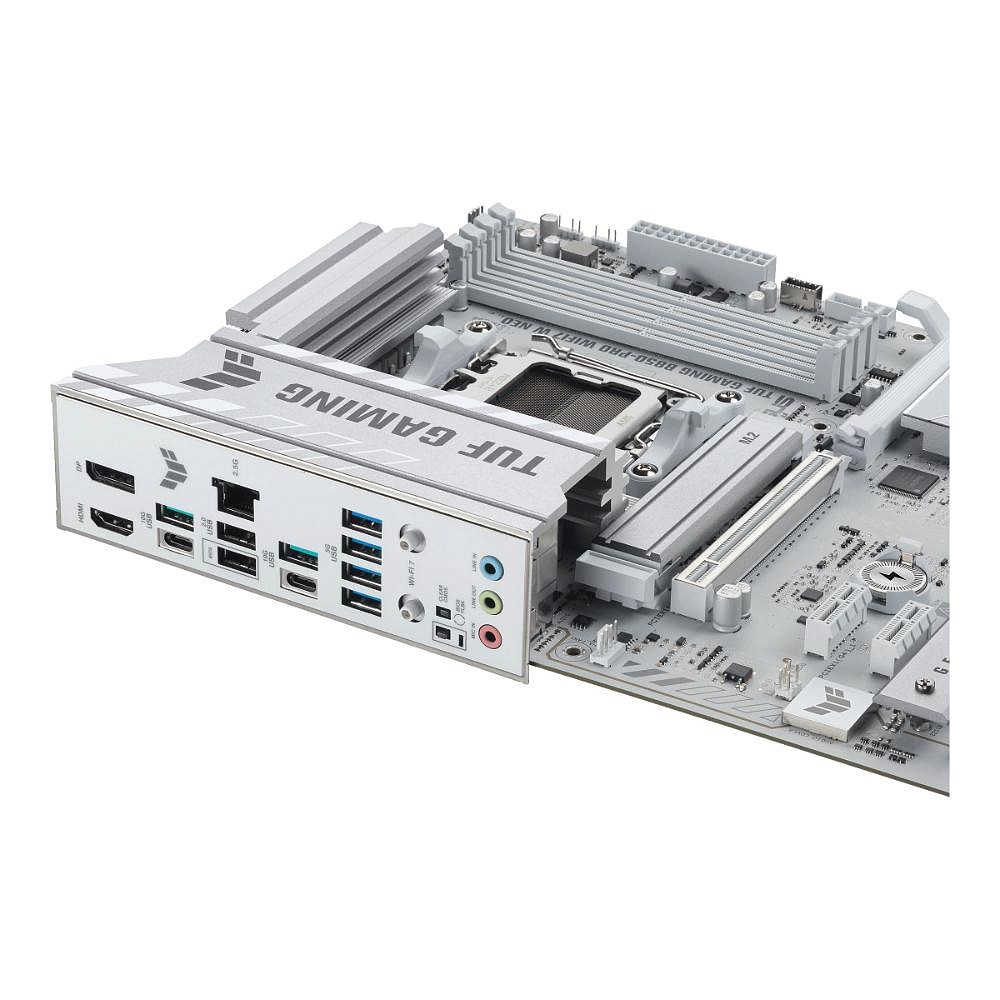

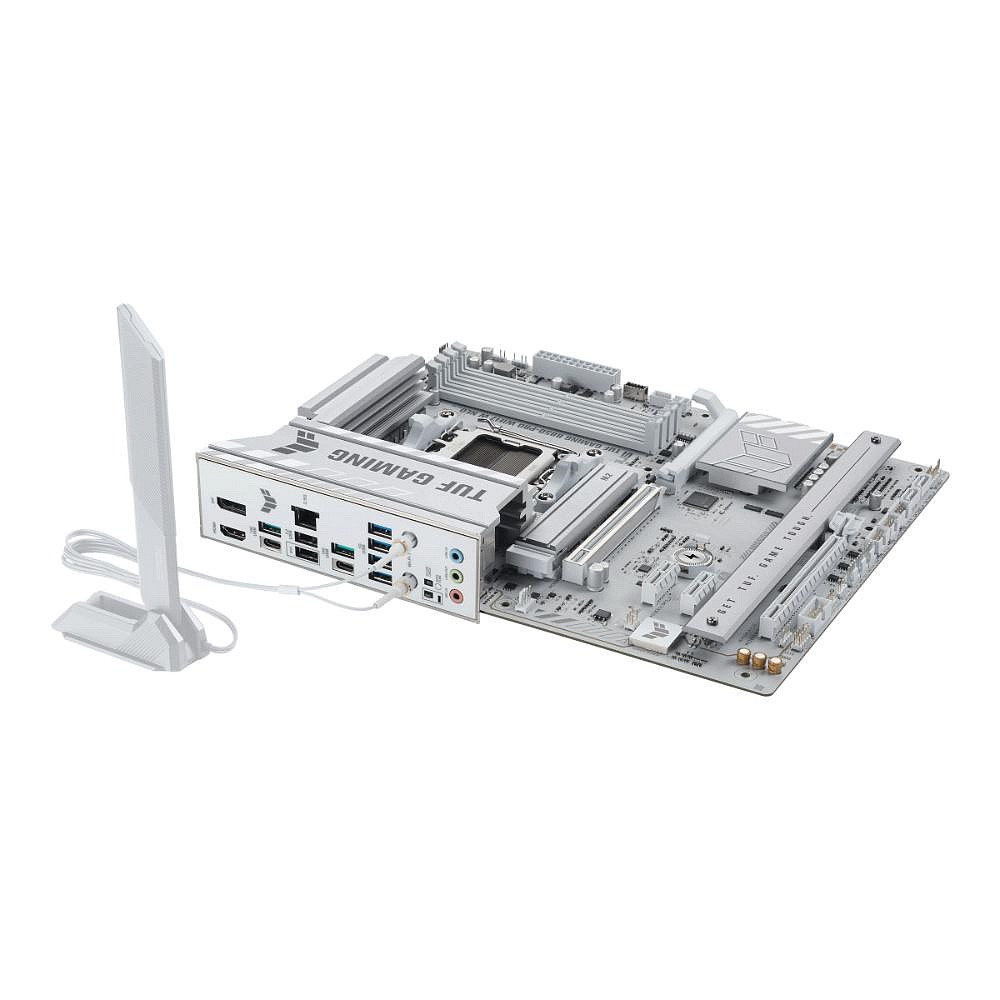

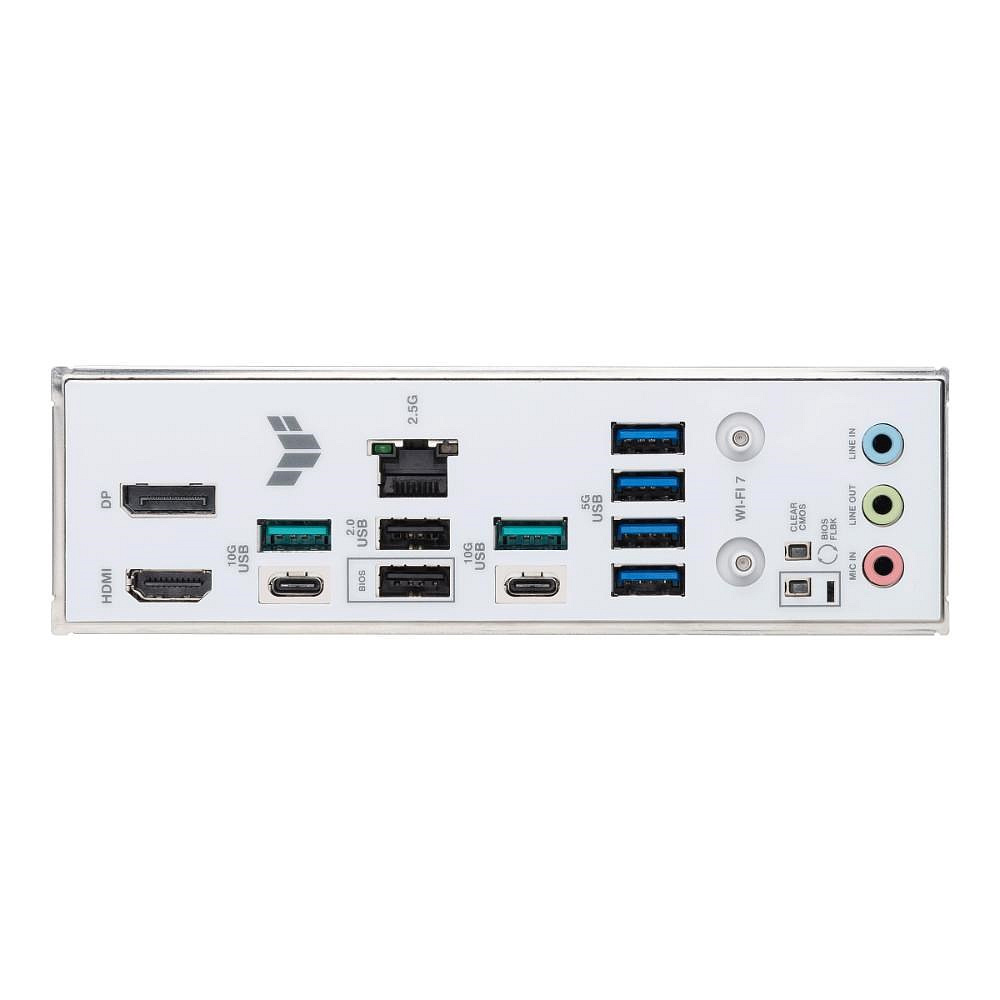

Back Panel I/O Ports
USB Type-C® and Type-A ports
DisplayPort
HDMI™
Wi-Fi module
Realtek® 2.5Gb Ethernet
3 x Audio jacks
BIOS FlashBack™ button
Clear CMOS button
Internal I/O Connectors
CPU / Chassis / AIO fan headers
M.2 and SATA connectors
USB headers
RGB headers
Front panel connectors
Special Features
ASUS TUF Protection
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY
Aura Sync
Software Features
Armoury Crate
Fan Xpert 4
ASUS AI Advisor
TUF GAMING CPU-Z
Norton 360 for Gamers (trial)
WinRAR (trial)
BIOS
64MB Flash ROM, UEFI AMI BIOS
Operating System
Windows 11
Form Factor
ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
